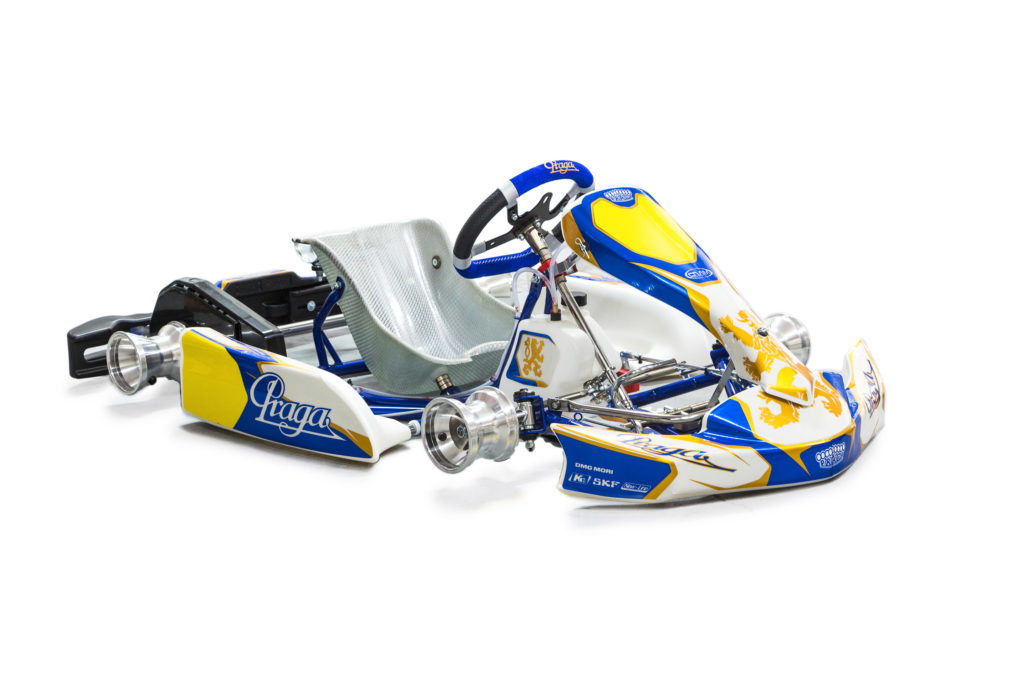

Monster Evo

The top product for young drivers

The chassis for the “Mini 60 and Rotax Mini/Micro MAX″ categories. The high performance chassis for young drivers. Recommended for drivers aged 8-12 years.
Read more

Monster Evo - F55B4558 - Monster Evo-1_2

Chassis that makes the difference

Different solution for different categories

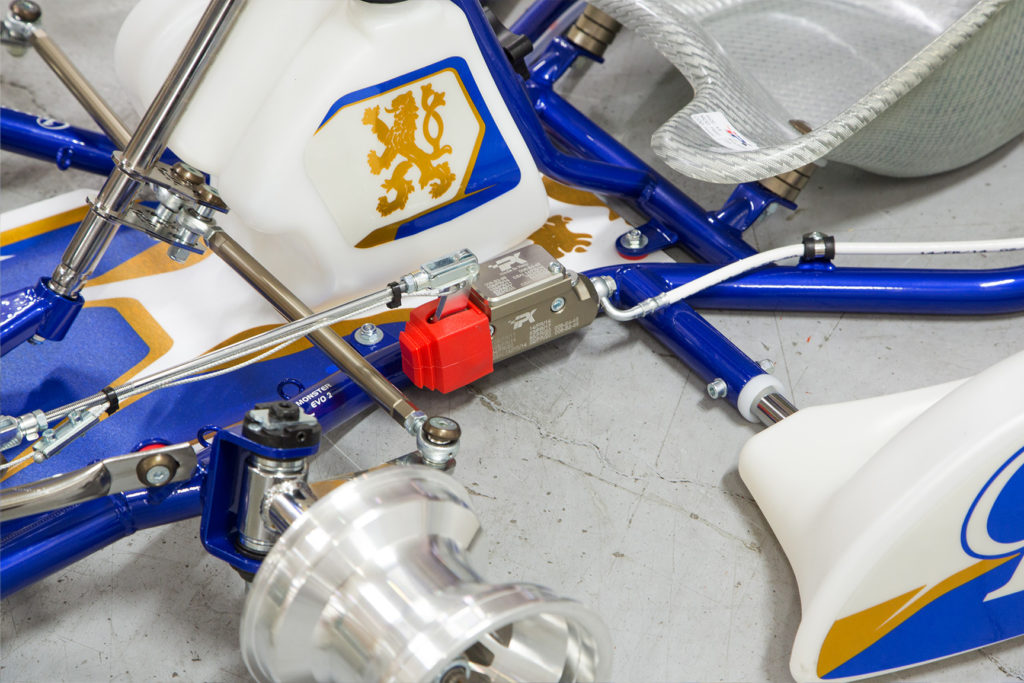

Derived from the floating and ventilated brakes used on the KZ models, the braking system of the Praga “Piccolo” has been designed to ensure the maximum efficiency and safety.
Monster Evo - F55B4569_2
Monster Evo - F55B4571_2

Main features

“Le Mans”
steering wheel

36 kg
chassis weight

3.5 litre
fuel tank

Ø25×960 mm
Ø30×5×960 mm

axle

Monster Evo - F55B4574_2

Standard equipment & optionals

Fiber Floor Plate3

Fiber floor plate
(3 hardnesses available)

optional part

Ventilated and Floating Brake Disks2

Floating brake disc supports & wheel hubs

M5 Steering Wheel Praga2

“Le Mans” Steering wheel

06

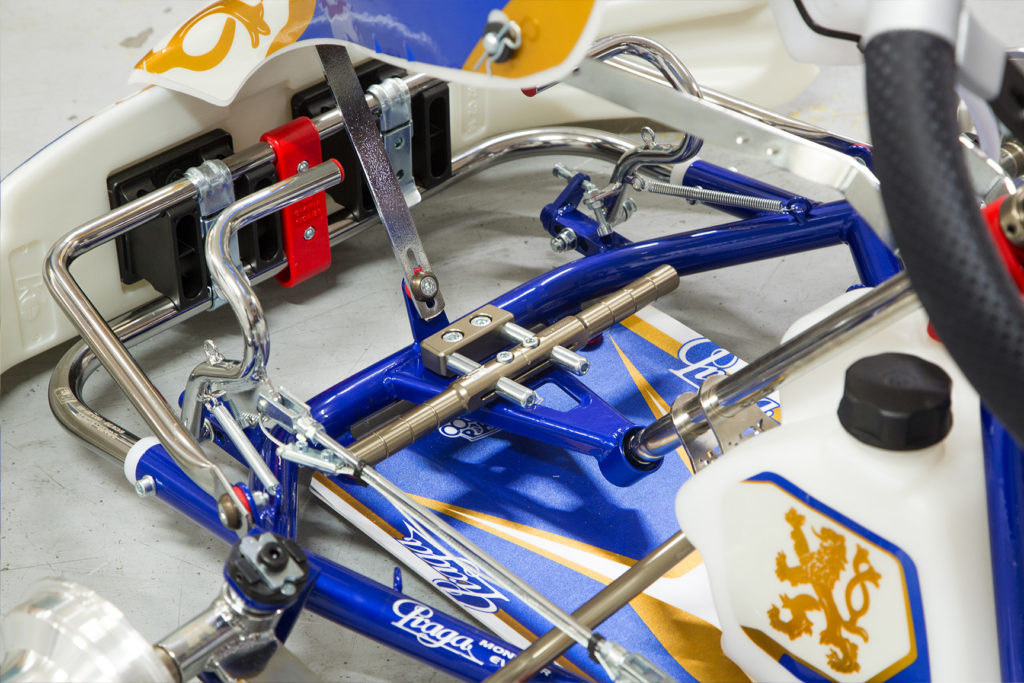

Universal adjustable footrest

optional part

Monster Evo - F55B4574_3

Go Fast!
Brake Hard!

CSAI homologated brake system

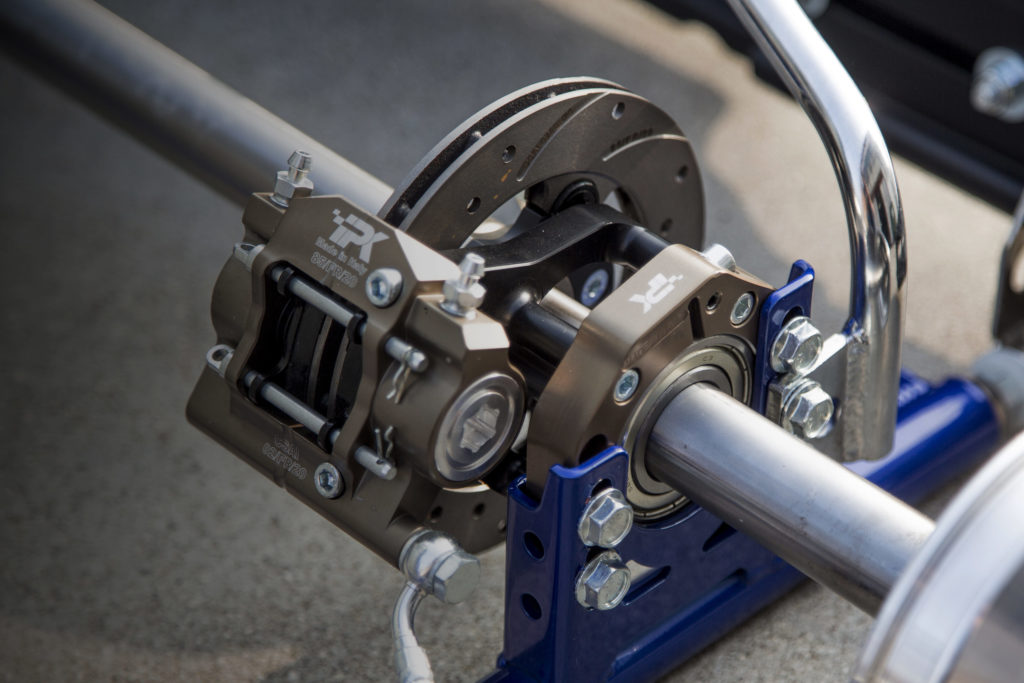

Derived from the floating and ventilated brakes used on the KZ models, the braking system of the Praga “Piccolo” has been designed to ensure the maximum efficiency and safety.

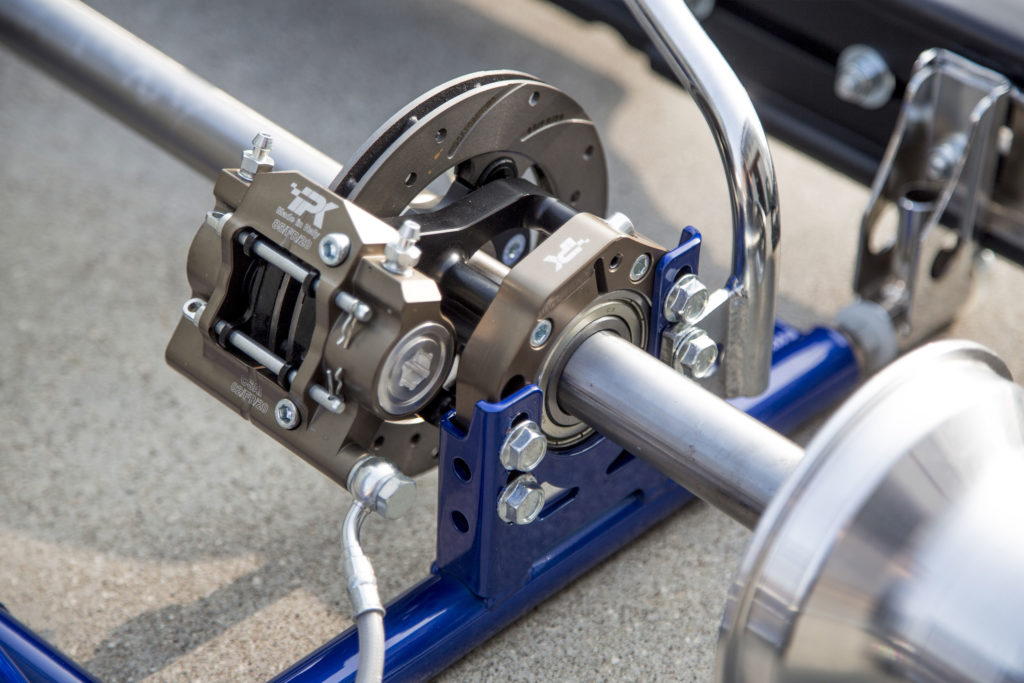

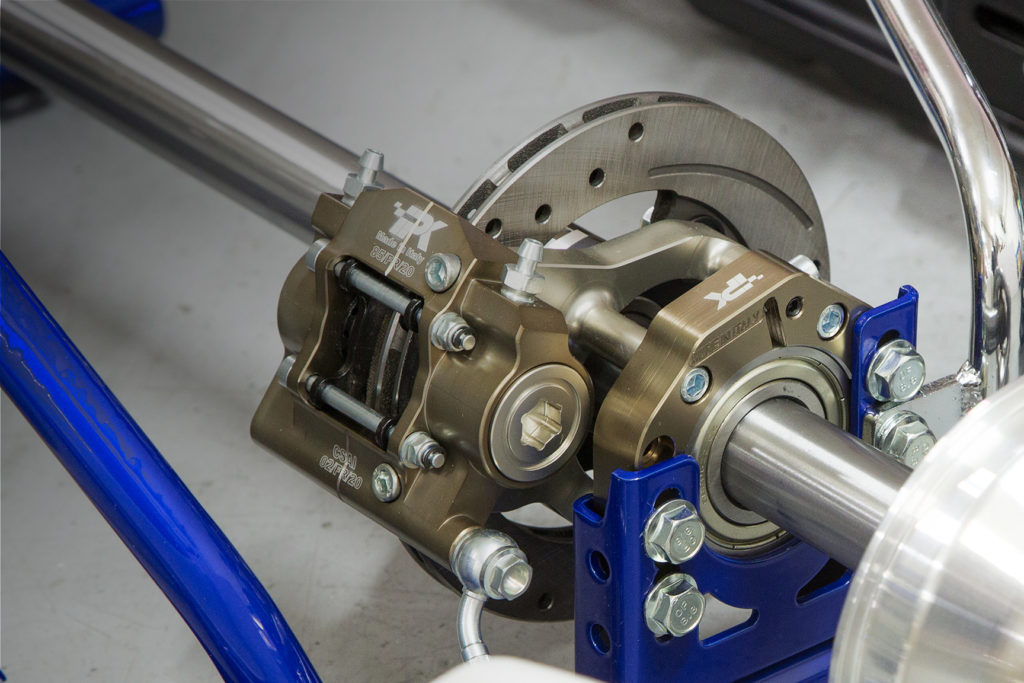

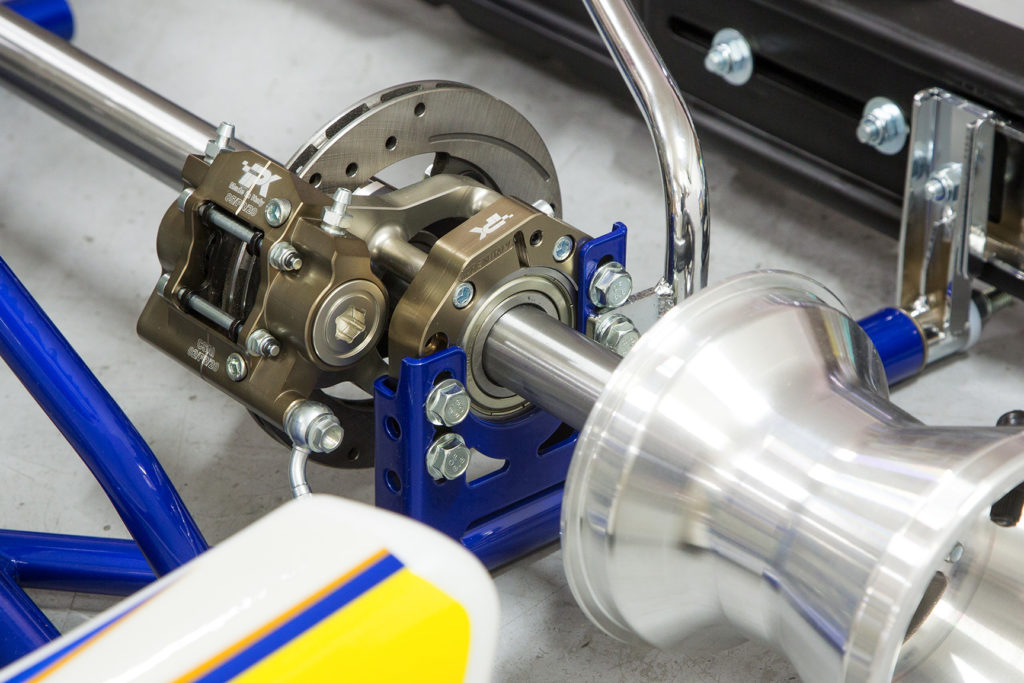

RBS.V2

Rear brake system

Ventilated floating Ø187mm or Ø195mm rear brake disc.

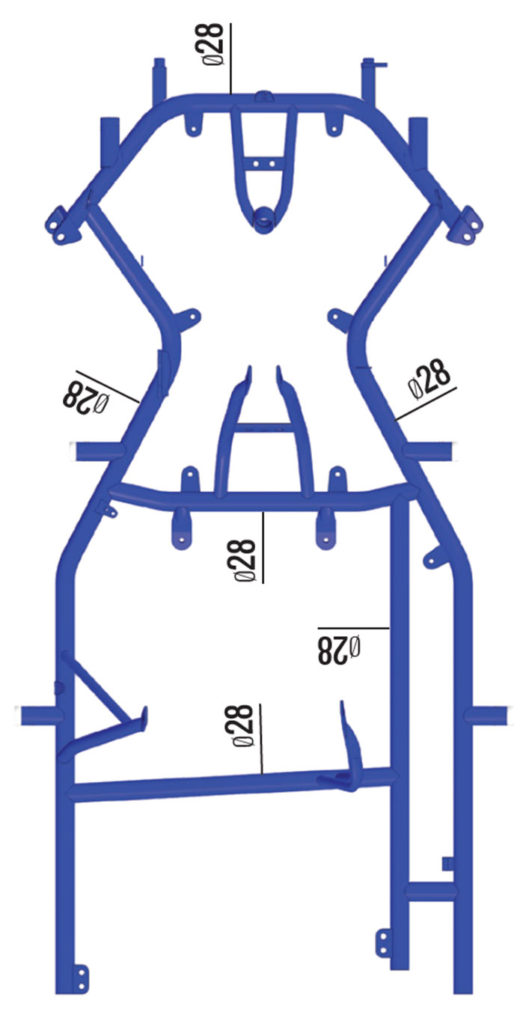

Frame Ø28 mm tubular frame made of high-strenght steel
Bodyworks MK14 top line model with CIK-FIA homologated supports

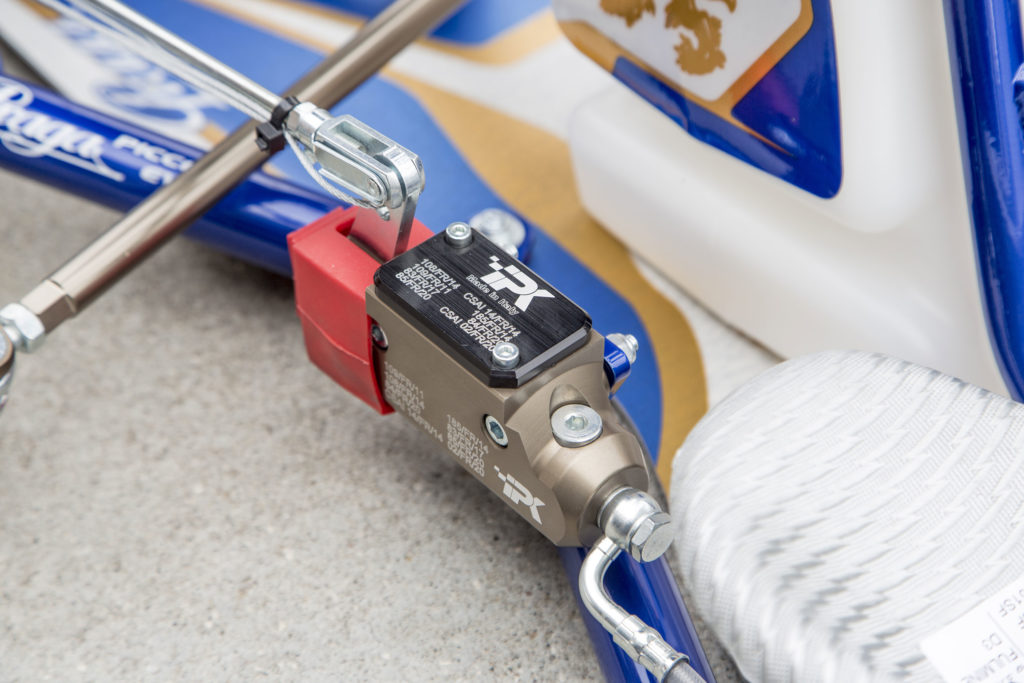

Brakes MKB-V1 brake system, pump with oil recovery tank, floating Ø149 mm ventilated disc
Steering Top line steering system with Ø330 mm “M5” steering wheel
Wheels Aluminium alloy Ø5 inches, 115 mm with bearings (front) – 140 mm (rear)
Tank Cap. 3.5 litre
Seat “Racing Mini”, size XXS | XS
Axle Ø30x5x960 mm
S | M | H

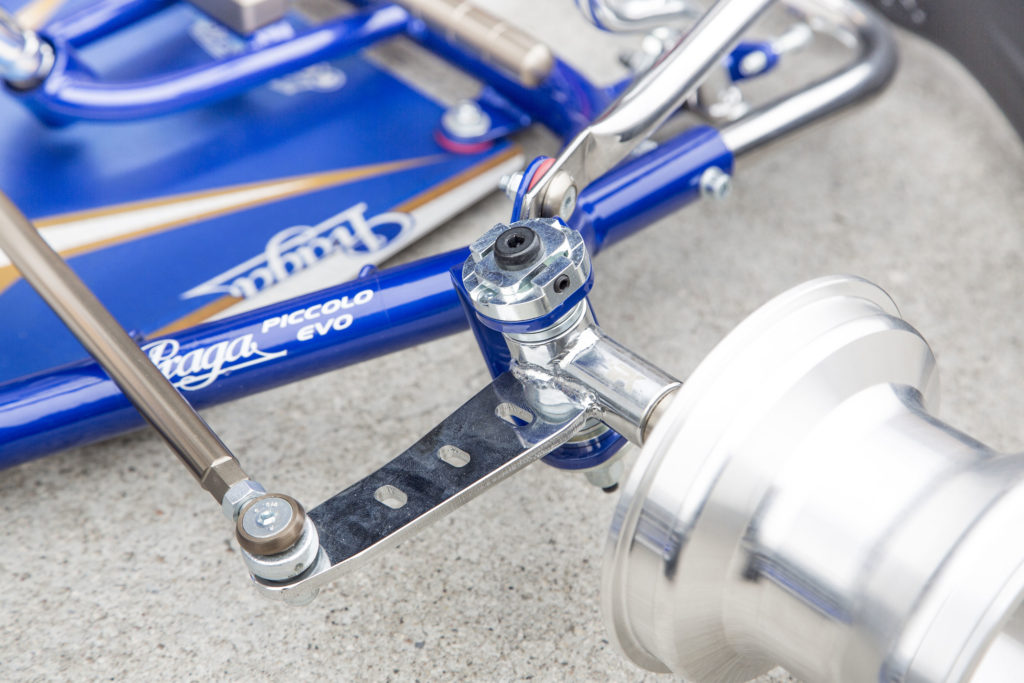

Spindles Ø17 with Ø10 kingpins and Camber – Caster regulation system
Weight 36 Kg

MONSTER EVO

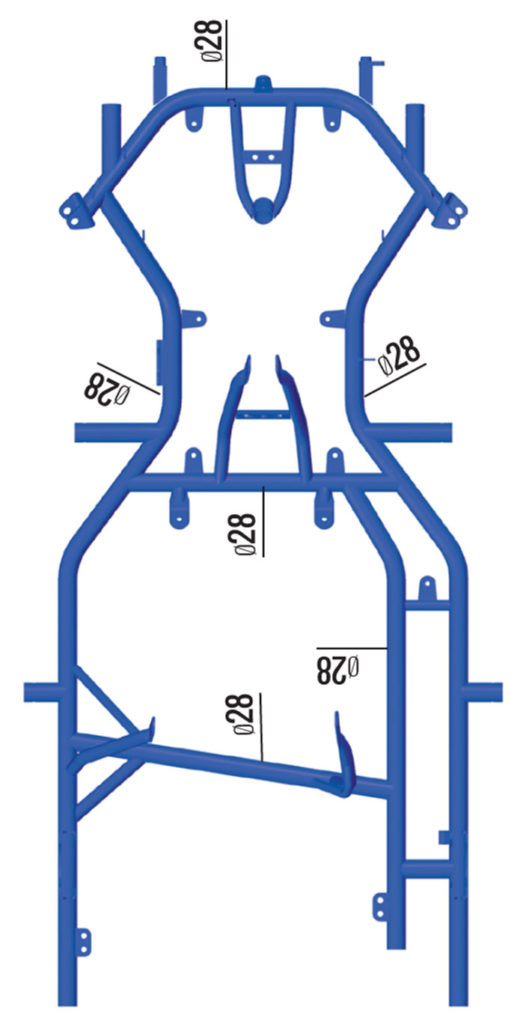

monster_tech_map

Categories

MINI 60
ROTAX MINI/MICRO MAX

Wheelbase

900mm
950mm
1010mm
